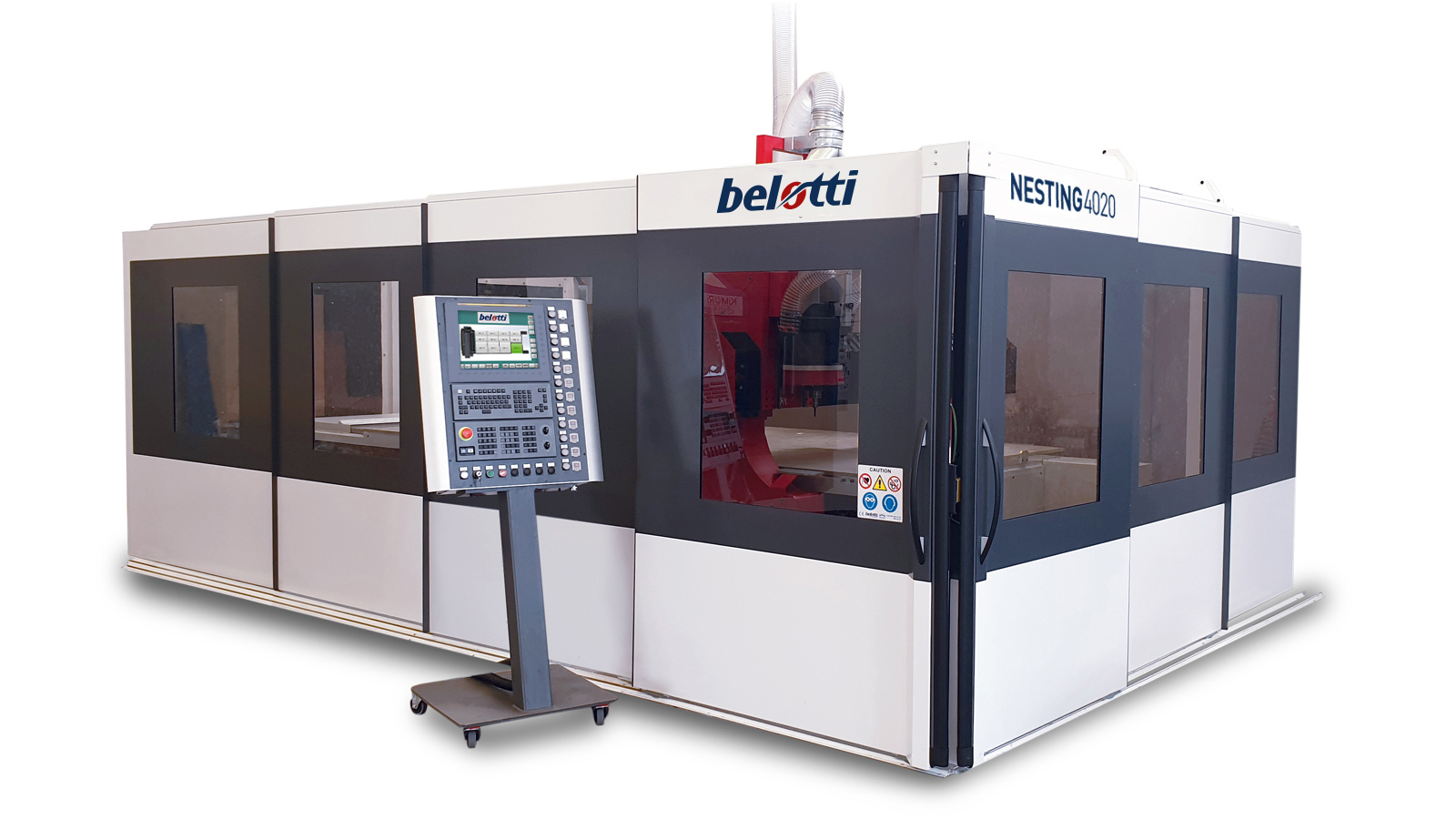

NESTING Series
3-axis compact Series of cnc centers for machining large plates in aluminium and plastic materials.
The NESTING Series is Belotti’s compact and highly flexible technological solution, developed to meet the demands of multiple industrial sectors including packaging, mechanical industry, checking fixtures, automotive, and aerospace.

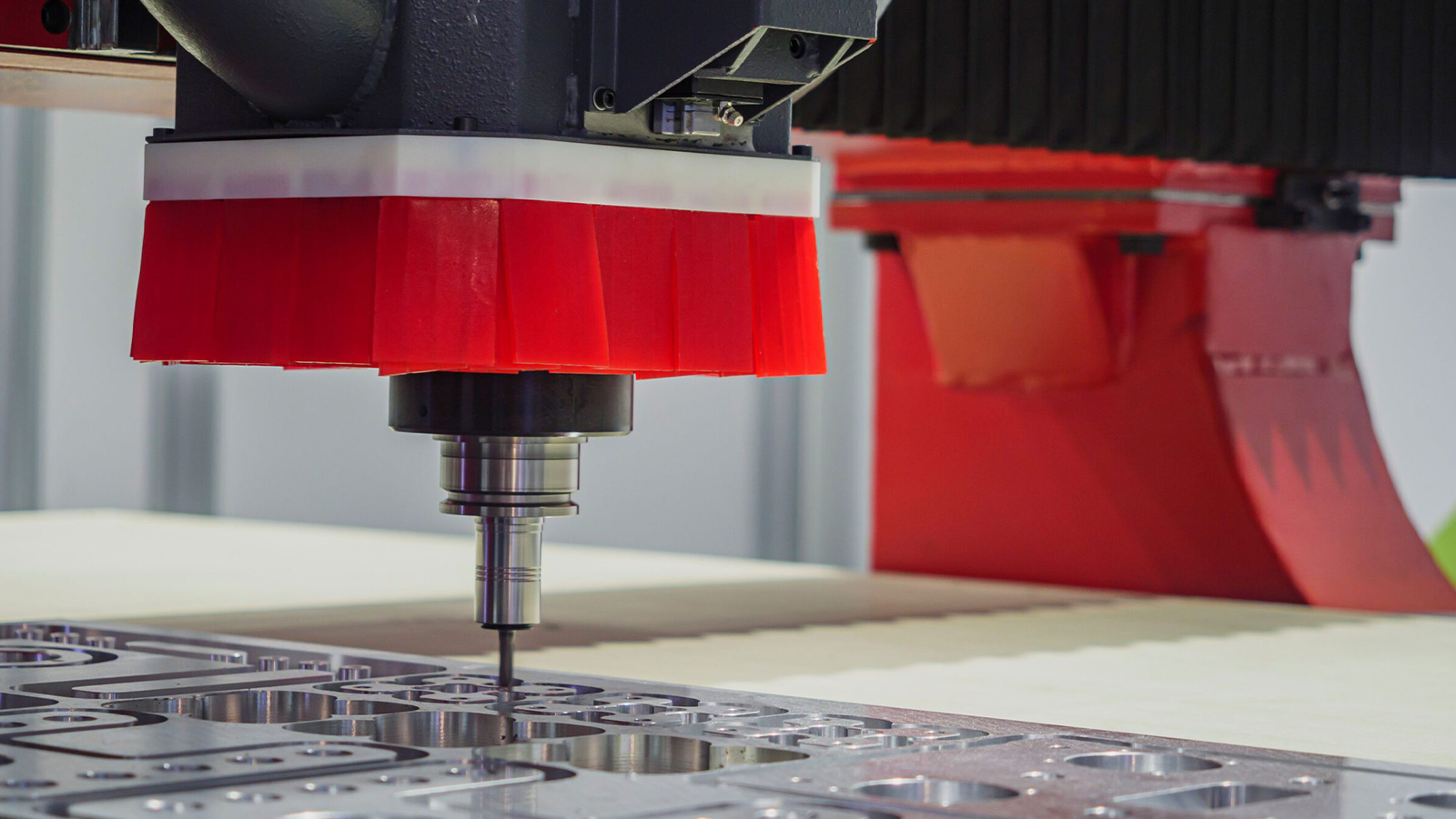

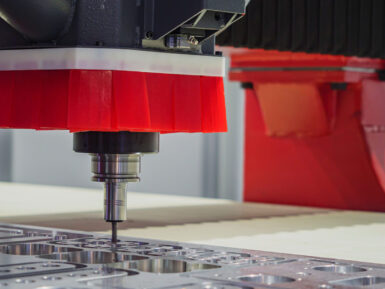

It’s the ideal technological solution to machine and nest even small pieces out of large aluminium plates or technical plastic panels, up to 50 mm thick.
Description
The three-axis machining centers of the NESTING Series are characterized by a small footprint and machining efficiency indicators of 100% for plastics, 70% for aluminium and 30% for resins.
The minimum footprint configuration, combined with the high dynamism of the milling head, guarantee maximum quality of the machined surfaces and high productivity thanks to the optimization of the cycle-times and the material used.
The Belotti NESTING 3-axis centers are designed to operate in unattended mode during the entire cycle-time, allowing a significant reduction in operator-cost and a high return on investment (ROI).
The compact and monolithic structure, made up of electrowelded steel with double 90° slideways on both baseframe sides, grants a high rigidity of the bridge and a reduction in handling and installation times.
The aluminium suction table with MDF panel and vacuum locking system and the suction system with NC electronic adjustment of the hood, ensure better cleanliness and safety of the working environment.
The “Easy Programming” option, the CAM/CNC plug-in software developed by Belotti, simplifies the programming of 2D geometries NESTING and complex machining operations, making it easier for the operator to control the machining center.
Contact us for further technical information, sales requests or to schedule an on-line meeting.
Sectors
- Packaging
- Checking fixtures
- Automotive
- Aerospace
- Railway
- Design and furniture
- Marine
- Energy and building
Materials

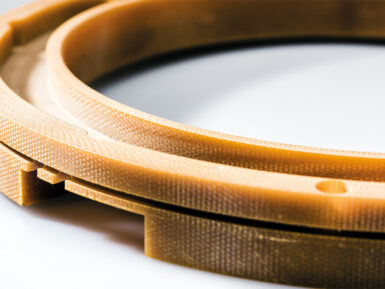

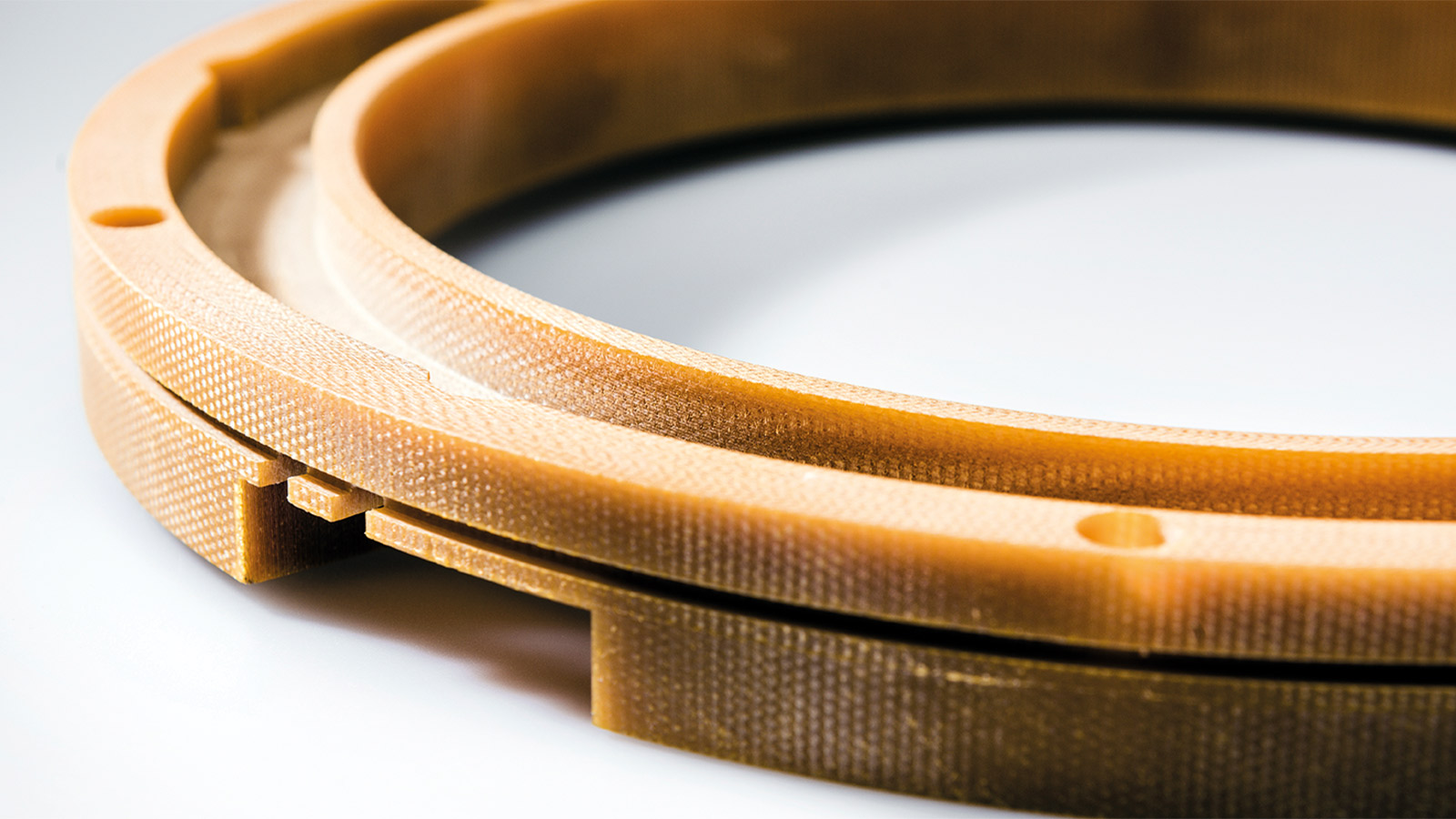

- Technical plastic

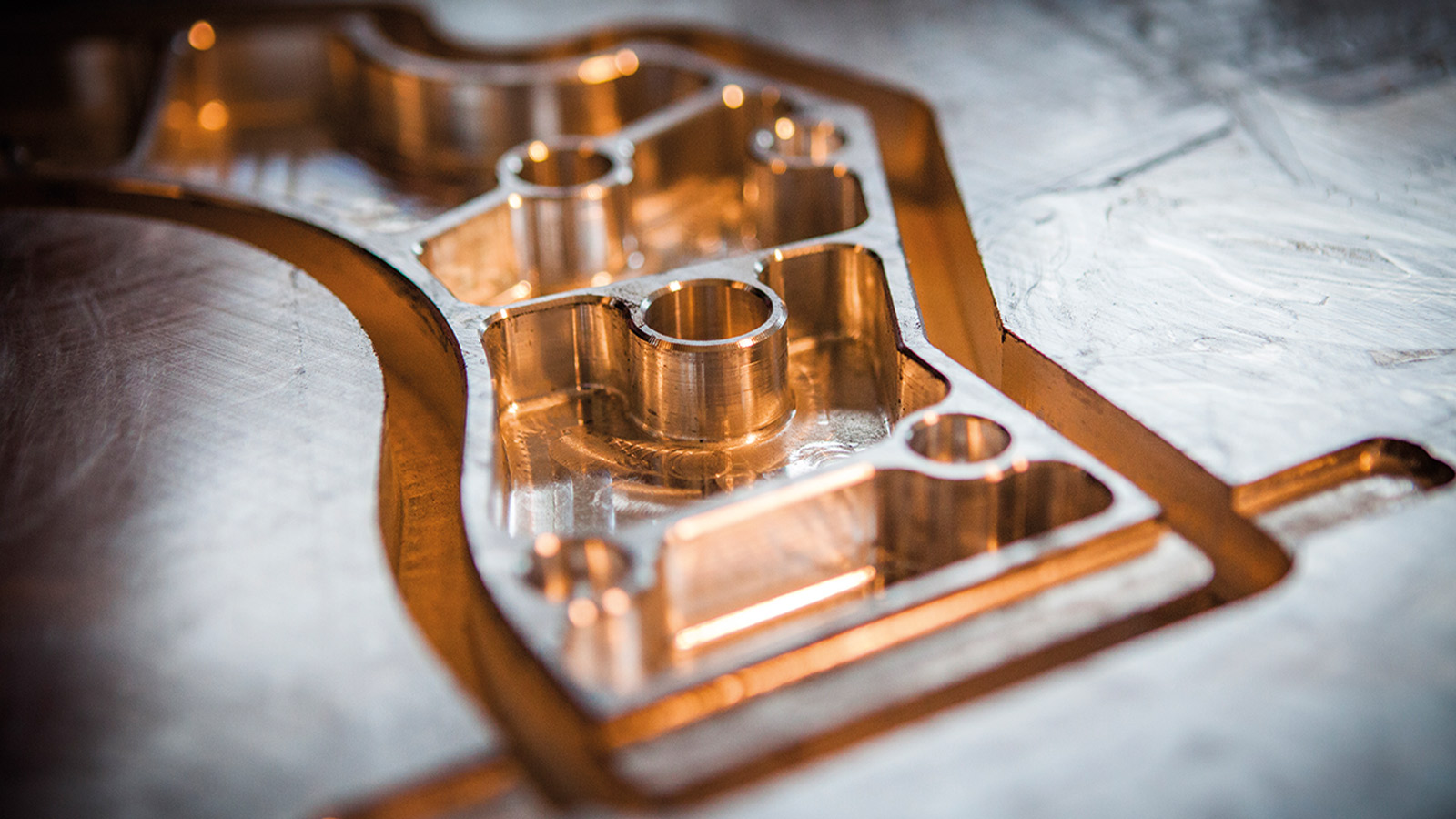

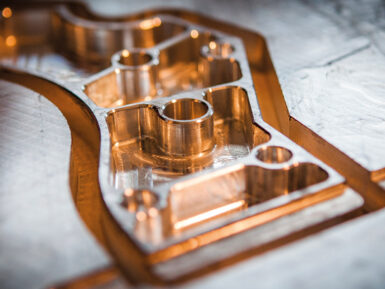

- Aluminium panels
- Light alloys
- Plastic
- Resins
Technical features
| Axis | X | Y | Z |
|---|---|---|---|
| Stroke | 3/4 m | 1,6/2/2,5 m | 0,45 m |
| Speed | 50 m/min | 30 m/min | |
| Spindle | From 15 kW up to 22 kW at 24.000 rpm max. | ||
| CNC | Fanuc, Siemens | ||
| Tool change | From 11 to 30 positions | ||
| Linear accuracy | ≤ 0,015 mm/m for linear axes | ||
| Axis | X | Y | Z |
|---|---|---|---|
| Travels | 78/118/157/236″ | 63/79/118″ | 17.72″ |
| Rapids | 1,270 ipm | 762 ipm | |
| Spindle | From 20 HP up to 30 HP at 24,000 rpm max. | ||
| CNC | Fanuc, Siemens | ||
| Tool change | From 11 to 30 positions | ||
| Linear accuracy | ≤ 0,0006″ / 40″ for linear axes | ||
Photo Gallery
Accessories
Aluminium vacuum table with MDF panel
Aluminium table on which MDF panels are screwed, especially designed for machining of aluminium plates.
The table is divided into 12 areas, with dimensions to be defined, that can be automatically managed by the CNC. It is equipped with vacuum electrovalves and preset vacuometers to check the minimum vacuum level on the part for safe clamping.
In case mechanical clamping is needed, the MDF panel can be removed.
Upon request, it will be possible to provide multiple rapid connections for vacuum clamping.

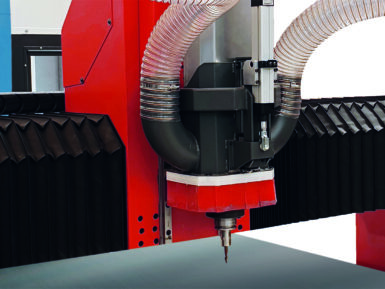

Electronic suction hood for 3-axis head
Scraps suction hood used with 3-axis machining, electronically controlled.
In a range of 180 mm the electronic hood automatically adjusts its extension according to the real distance from the part.
The hood automatically retracts during the tool changer.
The dust suction hood performance may vary according to the part geometry, to the material and to the machining strategy.

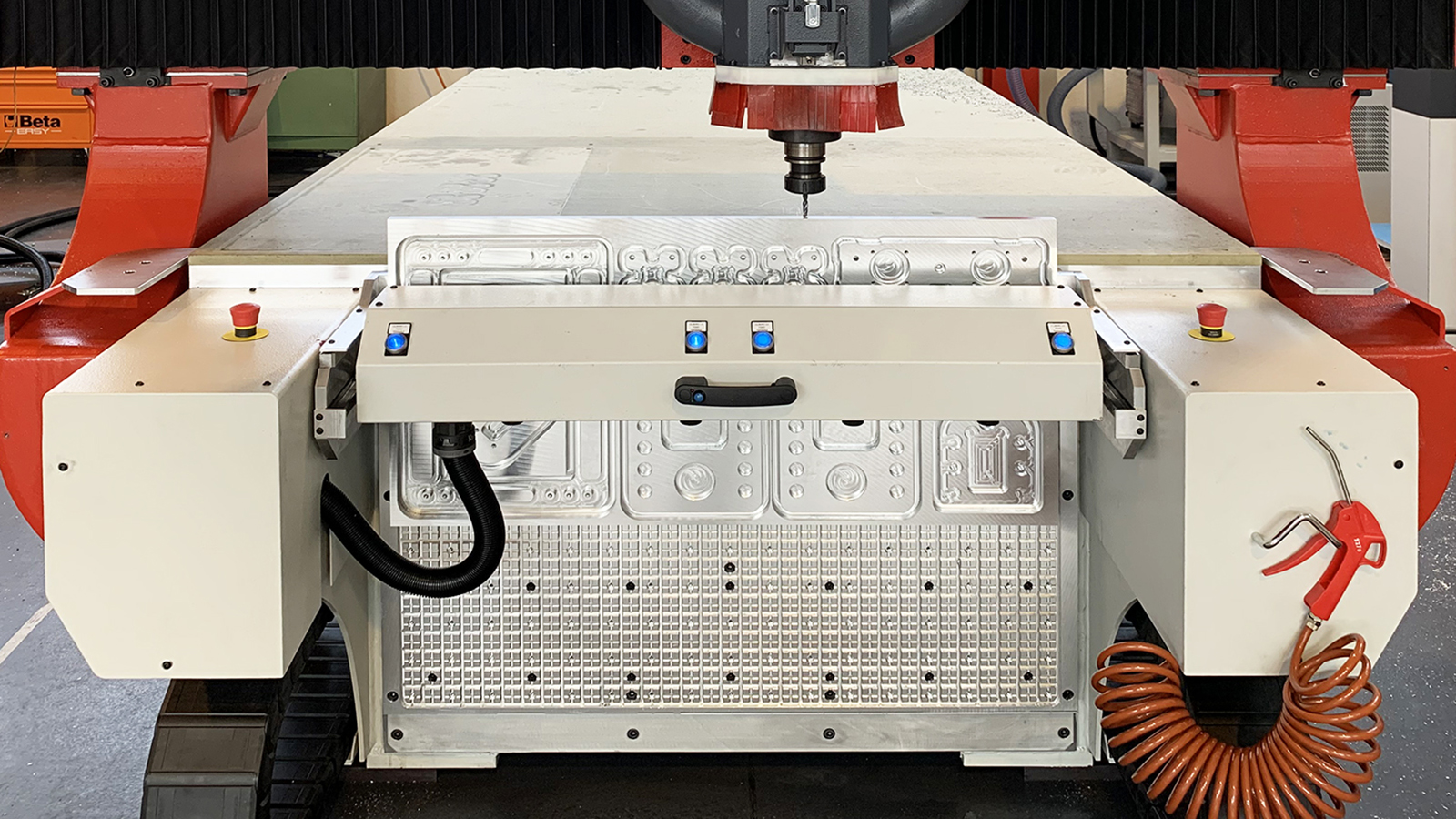

Vertical aluminium table
Especially recommended for machining on the side of the plate.
Positioned on the front of the table, it helps to centre and clamp the plates for milling, drilling and threading operations.
Minimal lubrication system through the spindle
Centralized grease system, complete with pressure control and minimum level in the tank, which provides for the automatic lubrication of the moving parts. Lubrication is managed by NC in fully automatic mode and allows an extension of the life of the mechanical parts.

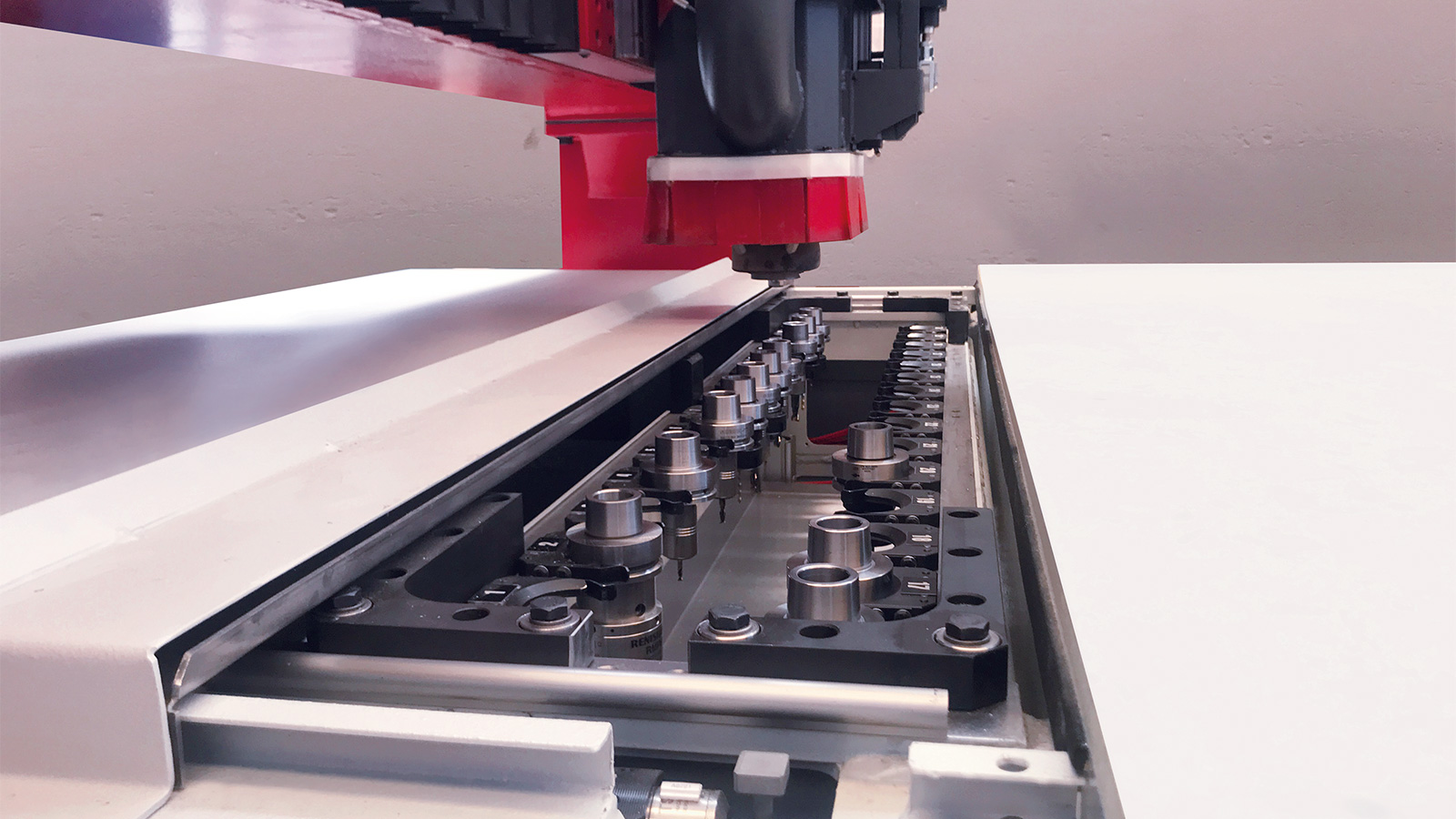

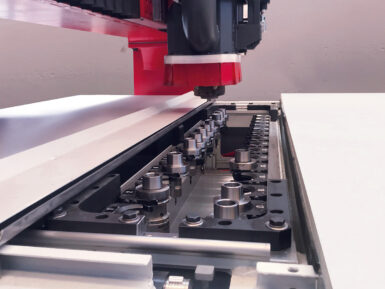

Automatic tool changer up to 30 positions
